Thanks for stopping by!

New Expanded offering of Moldboard Plow parts to fit John Deere plows!



NEW ITEMS!!!

Some wear parts for other makes of plow available...email your request.

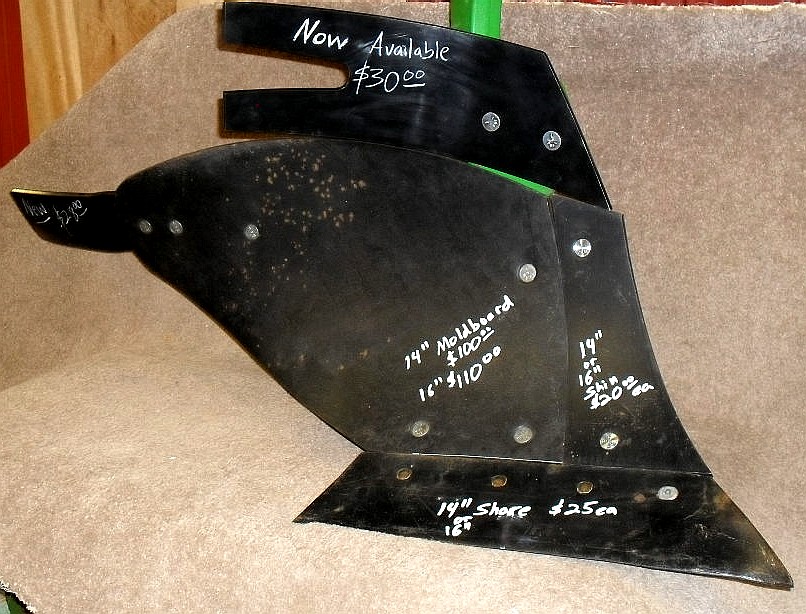

Here's a complete JD plow bottom with all new wear parts.

Moldboard extension, two-fingered 'Old Style' trash board, shin, share, moldboard.

Here's a view from the back of the bottom. The moldboard, shin, share, and landside are all made in Iowa by Wiese.

The moldboard extension and trash-board are exclusively produced and are authentic to original equipment. Made from excellent quality steel will ensure a long wear life.

A view from above gives you and idea of the fit and finish.

New Shins to fit 14" or 16" HS bottoms are $20 each (includes hardware). New wide cut shares 14" or 16" are $25 each including bolts. New Moldboards

14" $100 each

16" $110 each

An exact copy of the original John Deere design trash board, which hasn't been available in nearly 40 years.

Priced at a modest $30 each you can have a plow with trash boards with both fingers.

Currently only the trash board is available which means the customer must provide the cast iron brackets.

Moldboard extension just like the original but half the price at your dealer. Has just the right 'curve' to match the moldboard ensuring a smooth lay-over of the furrow slice...a must on hillside plowing or plowing at slow speeds. $28.00 each
Good Landsides are essential to do a proper job of plowing and to ensure the ability to have a properly adjusted plow which pulls straight and true. The back plates are $20 and the replaceable wear pads are $15. They will fit on both HS and NU John Deere bottoms. These will not fit onto the older 'black smith' style share bottoms.

Here is an example of what the new 17" notched plow coulter blades look like on a restored JD 555H plow. Just the blade is available for $35 each, the rest of the coulter is available used on a limited basis.

OEM rivets (for the authentic look and fit) are available for 50 cents each.











For the show or for the field

It's Time to spruce up your JD plow...

A replacement for JD part 33132A -17” notched plow coulter blade

Since catching the plow bug I’ve made it a point to explore the options for available parts. I’ve found through trial and error that one of the most critical parts necessary to do a good job of plowing is having proper coulters (which are nonetheless properly adjusted). It seems most all of the vintage plows I own were lacking quite miserably in the coulter department so I naturally sought out what blades were available. The options from JD were quite disappointing in regards to price and authenticity. According to my dealer the 33132A blades went obsolete in 1982; to which JD offers no current replacement. The closest blade JD currently offers is a plain (smooth edge) 17” blade which lists for $64.00. My desire was to find a notched blade as I felt they not only performed better in high trash field conditions but are more pleasing to the eye.

I searched out any new old stock 33132A notched coulter blades, but I came up empty handed. By chance, I met a tillage parts vendor at a farm show that was willing to talk antique tractors. On a whim, I told him about my frustrations with seeking out a 17” notched plow coulter blade to which he took interest. After several months of back and forth measurements & reviewing engineering prints, we came to an agreement for having new blades made to the JD 33132A blade specifications. The high quality blades are made in Spain.

They are currently available in limited quantities for $35.00 each + shipping.

Call 573-768-4092 for details or email tyler@mrbtractors.com for more information



Link to --> RIVER HILLS ANTIQUE TRACTOR CLUB PICTURES





 I am committed to serving YOU the collector, farmer, and enthusiast with any of your John Deere collecting needs. I'm a collector too...not just a seller so I can understand how important this old tractor addiction can be! If you're looking for something please let me know...I always enjoy the challenge of helping folks find tractors & parts that they're looking for.



As always, if you're interested in any tractors or parts please email me at tyler@mrbtractors.com and I'll be happy to get more pictures and additional information for you. If you prefer to call then please do so (573) 768-4092.
